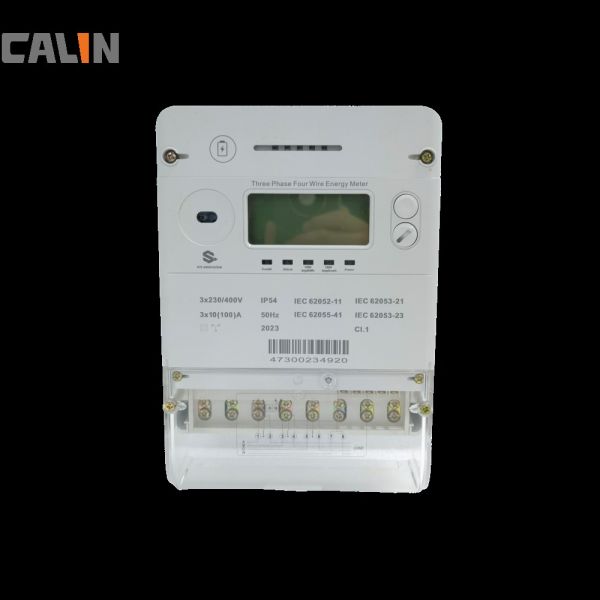

DLMS/STS Compliant Smart Electric Meter with Class 1.0 Accuracy and 100 A Max Current for Industrial Broad Range Applications

Contact Now

Wholesale Price DLMS/STS Compliant Electricity Meter for Industrial Broad Range Applications

DLMS/STS Compliant Smart Electric Meter with Class 1.0 Accuracy and 100 A Max Current for Industrial Broad Range Applications

Flexible Payment Control

The CA368 allows utility and service providers to configure flexible payment control settings including free basic unit allocation, emergency overdraft credit, low credit warnings, and customized repayment rules.

Key Benefits

Meters can be extended to Split type with UIU
Multiple communication options: PLC/RF/LoRa/GSM wireless with AMR AMI server
Time of Use (TOU) based consumption recording

Technical Parameters

Parameter	Specification
Nominal voltage Un	3x230/240V
Limited voltage	50%~130%Un
Nominal frequency fn	50-60Hz+5%
Basic current(Ib)	10A
Maximum current(Imax)	100A
Starting current(Ist)	0.4%IB
Active energy constant	1000imp/kWh
Accuracy as Active energy to IEC62053‐21	Class1.0
Power consumption in Voltage circuit	<2W <8VA
Power consumption in current circuit	<1VA
Operating temperature	-25℃ to +70℃
Storage temperature	-40℃ to +85℃

Main Features

Critical metrological value measurement: V, A, PF, P, etc
Trip on no credit or preset balance level
Disconnect on tamper detected
Configurable settings for power limit, emergency credit, debt collection, surcharges
Uni-directional measurement for reverse energy (SRE)
Advanced anti-fraud features

Frequently Asked Questions

Q: Are you a trade company or a manufacturer?

A: We are an original meter manufacturer and solution provider, offering comprehensive support for your needs.

Q: Do you provide samples for testing, free or extra?

A: Samples are available for a reasonable cost.

Q: What payment terms do you accept?

A: We accept Paypal, West Union, T/T, and L/C. For payments ≤USD2000, 100% in advance. For payments >USD2000, 30% in advance by T/T with balance payment before shipment.

Q: How long is your delivery time?

A: Typically 5-10 days for stock items, or 15-30 days based on order quantity.
