Dual-source Single-phase Prepaid Electricity Meter with 60/80/100A Max Current IP56 Waterproof and 15 Years Lifespan

Contact Now

Dual-source Prepaid Energy Meter Smart Single-phase STS Compliant Token Prepayment Meter with Vending System AMI Solution
Dual-source Single-phase Prepaid Electricity Meter with 60/80/100A Max Current IP56 Waterproof and 15 Years Lifespan Dual-source Single-phase Prepaid Electricity Meter with 60/80/100A Max Current IP56 Waterproof and 15 Years Lifespan

Calin designs and produces cost-efficient prepaid electric meters ideal for AMR/AMI solutions in both residential and industrial applications. Our prepaid meters feature robust anti-tamper protection.

Key Benefits
  • Multiple communication options: Current loop, RF, LoRa, LoRaWAN, PLC/G3PLC, GPRS/4G (on request)
  • Time of Use (TOU) functionality with multi-tariff and holiday settings
  • Easy connection to User Interface Unit (UIU) for split type applications
  • 15-year designed lifespan for long-term reliability
  • Customizable balance alarm settings to meet user requirements
Technical Parameters
Parameter Specification
Nominal voltage Un 220/230/240V
Limited voltage 50%~130%Un
Nominal frequency fn 50/60Hz
Basic current(Ib) 5A
Maximum current(Imax) 60/80/100A
Starting current(Ist) 0.4%Ib
Active energy constant 1000imp/kWh
Accuracy as Active energy to IEC62053‐21 Class1.0
Power consumption in Voltage circuit <2W <8VA
Power consumption in current circuit <1VA
Operating temperature -25℃ to +70℃
Storage temperature -40℃ to +85℃
Main Features
  • Detection of significant reverse energy (SRE)
  • IEC62056-21 compliant optical & RS485 port for easy data interrogation
  • Automatic disconnection on overload and no credit conditions
  • Advanced electricity theft prevention functionality

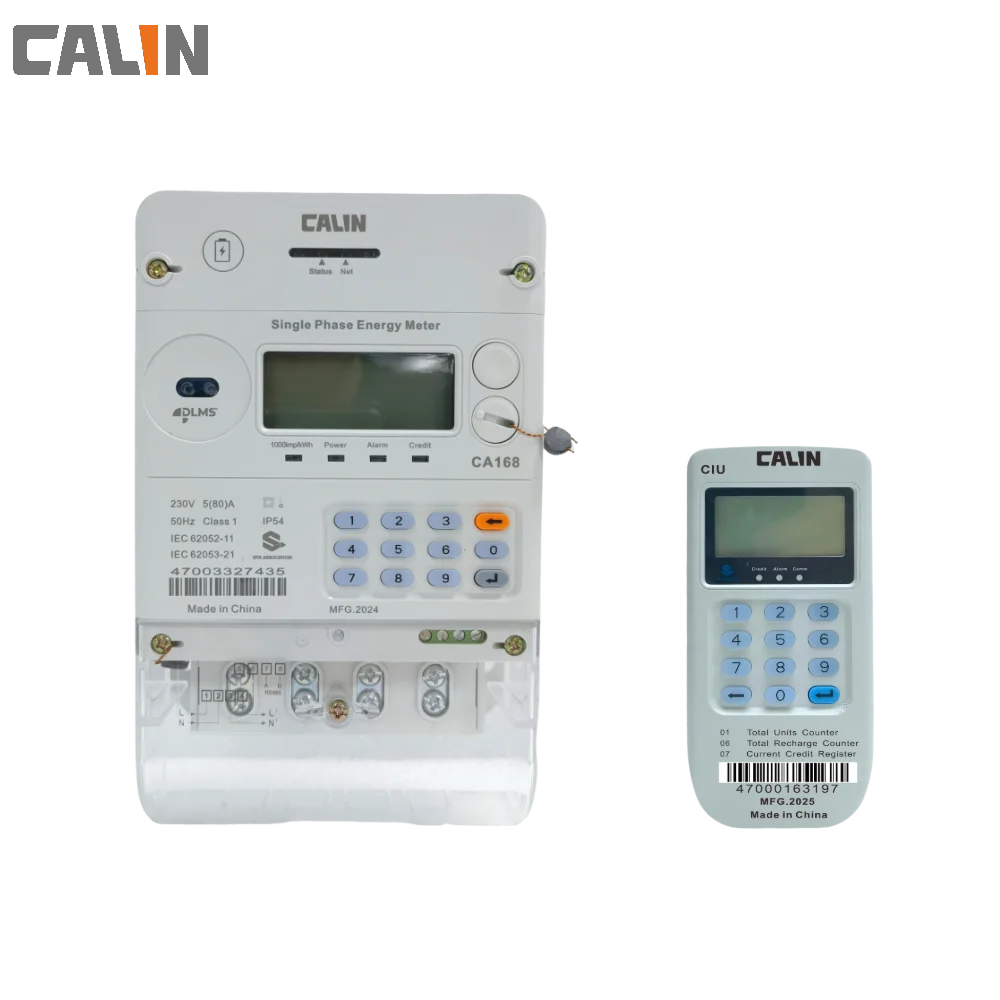

Product Images
Dual-source Single-phase Prepaid Electricity Meter with 60/80/100A Max Current IP56 Waterproof and 15 Years Lifespan Dual-source Single-phase Prepaid Electricity Meter with 60/80/100A Max Current IP56 Waterproof and 15 Years Lifespan
Certifications
Dual-source Single-phase Prepaid Electricity Meter with 60/80/100A Max Current IP56 Waterproof and 15 Years Lifespan Dual-source Single-phase Prepaid Electricity Meter with 60/80/100A Max Current IP56 Waterproof and 15 Years Lifespan Dual-source Single-phase Prepaid Electricity Meter with 60/80/100A Max Current IP56 Waterproof and 15 Years Lifespan Dual-source Single-phase Prepaid Electricity Meter with 60/80/100A Max Current IP56 Waterproof and 15 Years Lifespan

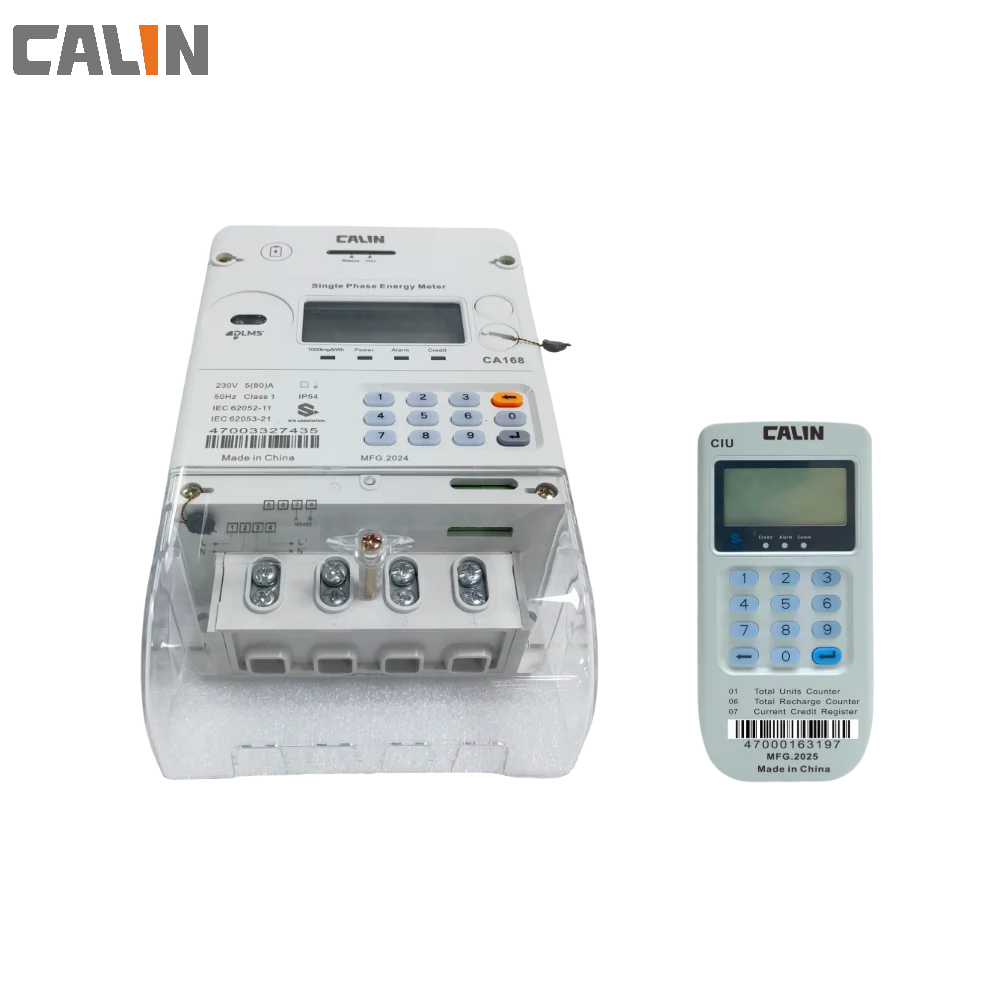

Detailed Images
Dual-source Single-phase Prepaid Electricity Meter with 60/80/100A Max Current IP56 Waterproof and 15 Years Lifespan Dual-source Single-phase Prepaid Electricity Meter with 60/80/100A Max Current IP56 Waterproof and 15 Years Lifespan Dual-source Single-phase Prepaid Electricity Meter with 60/80/100A Max Current IP56 Waterproof and 15 Years Lifespan Dual-source Single-phase Prepaid Electricity Meter with 60/80/100A Max Current IP56 Waterproof and 15 Years Lifespan
Our Service
Dual-source Single-phase Prepaid Electricity Meter with 60/80/100A Max Current IP56 Waterproof and 15 Years Lifespan
Pre-Sales Service
  • Inquiry and consulting support
  • Sample testing support
  • Factory viewing opportunities
Dual-source Single-phase Prepaid Electricity Meter with 60/80/100A Max Current IP56 Waterproof and 15 Years Lifespan
After-Sales Service
  • Installation and usage training
  • Overseas engineer support for machinery service
